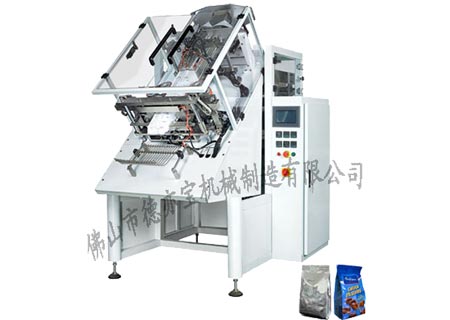

Product’s Name：DBIS-6848 Expanded Food Packaging Machine   Product’s ID： DBIS-6848 Expanded Food Packaging Machine

Introduction：

DBIS-6840ALARGE VERTICAL AUTOMATICAL OR SLANTING PACKING MACHINE
Technical characteristics：
1.Simens PLC control with suitable，reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,    printing, cutting , finished in one operation.
2.Slanting packaging , very useful to protect for the breakable products .
3.Box-packaging bag is more nicety .
4.Servo motors control the carrying film , high precision orient-ation, size more nicety.
5.External film releasing mechanism: simpler and easier install-ation of packing film.
6.The process of vertical sealing can adjust the volume deviation automatically ,greatly reduce labor intensity .
Application：
Suitable for packing of various of granule, slice , strip , such as biscuits , rice , potato chips , shrimp chip, compet foodstuff ,jelly, peanut,coffee ,milk powder  etc . Packing with in 5000ml.
（Technical parameters）：
Type：DBIV-6840A
Measuring range：100-5000ml
Front width：90-160(mm)
Side width：50-100(mm)
With of side seal：5-10(mm)
Bag length：150-480(mm)
Packaging speed：10-60bags/min
Packing material：OPP/CPP OPP/CE PET/PE etc.complex film
Max width of film roll：680mm(Box Bag1:560mm)
Machine power：7.5KW

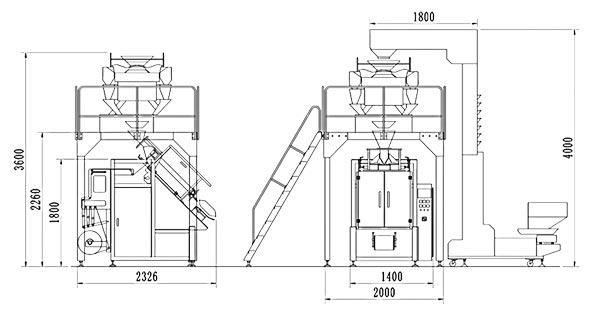

Dimension:1700(L)x950(W)x1900(H)mm
Machine weight：1200Kg

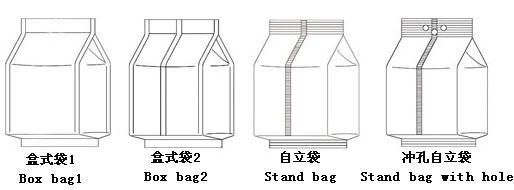

Bag Format：
