DBIV-4230-PPSauce packing machine
| Product’s Name：DBIV-4230-PPSauce packing machine Product’s ID： DBIV-4230-PPSauce packing machine |
| Introduction： |

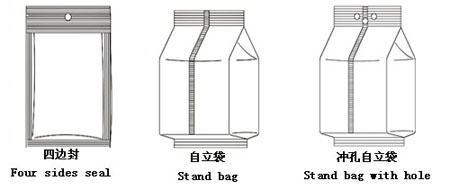

| DBIV-4230-PP VERTICAL LIQUID PACKING MACHINE Technical characteristics: 1.English and Chinese screen display ,operation is simple . 2.PLC computer system , function is more stable , adjustment any parameters not need stop machine. 3.It can stock ten dispose , simple to change variety. 4.Double Sever motors , drawing film position accurately , and the speed more fast . 5.Temperature independent control system ,precision get to±1℃. 6.Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material. 7.Packing type diversification , pillow sealing, standing type ,punching etc. 8.Bag–making , sealing, packing, print date in one operation. 9.Work circumstance quiet, low noise. Application： suitable for various of granule，strip，slice，packing range within 1200ml. Technical parameters： Type ：DBIV-4230 Bag length ：60-300mm(L) Bag width ：60-200mm(W) Max width of roll film：420mm Packing speed ：5-60bags/min Measuring range ：150-1200m Air consumption：0.65mpa Gas consumption：0.3m3/min Power voltage：220VAC/50Hz Power ：2.2KW Dimension：1080(L) X1300(W) X1400(H)mm Net Weight：500KgBag Format：

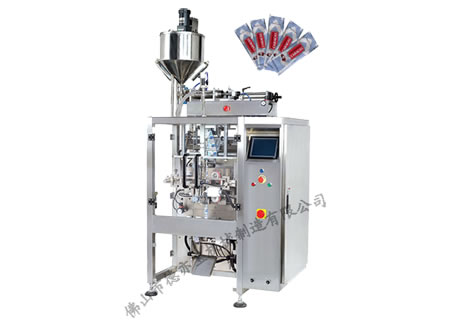

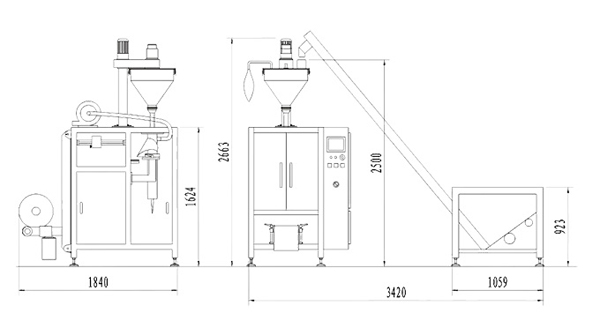

Host appearance chart：
|
