DBIV-4230II High-speed automatic packaging machine
| Product’s Name：DBIV-4230II High-speed automatic packaging machine Product’s ID： DBIV-4230II High-speed automatic packaging machine |
| Introduction： |

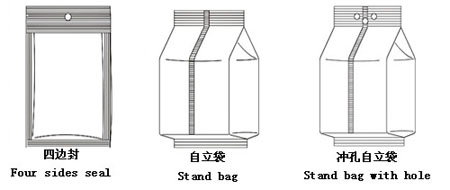

| DBIV-4230Ⅱ DOUBLE CONNECT HIGH SPEED FULL AUTOMATIC PACKING MACHINE Technical characteristics: 1.English and Chinese screen display,operation is simple . 2.PLC computer system, function is more stable,adjustment any parameters not need stop machine. 3.It can stock ten dispose, simple to change variety. 4.Sever motor drawing film, position accurately. 5.Temperature independent control system,precision get to±1℃. 6.Horizontal, vertical temperature control,suitable for various of mix film, PE film packing material. 7.Packing type diversification, pillow sealing, standing type,punching etc. 8.Bag–making,sealing, packing, print date in one operation. 9.Work circumstance quiet, low noise. Application： Suitable for packing of granule，slice，strip，such as patoto chips、shirmp chip、jelly，peanut.etc. Technical parameters: Type ：DBIV-4230II Bag length ：60-300mm(L) Bag width ：60-200mm(W) Max width of roll film：420mm Packing speed ：5-120bags/min Measuring range ：1200ml×2(Max) Air consumption：0.65mpa Gas consumption：0.5m³/min Power voltage：220VAC/50Hz Power ：4.4KW Dimension：(L)2050×(W)1450×(H)1270mm Net Weight：800KGBag Format：

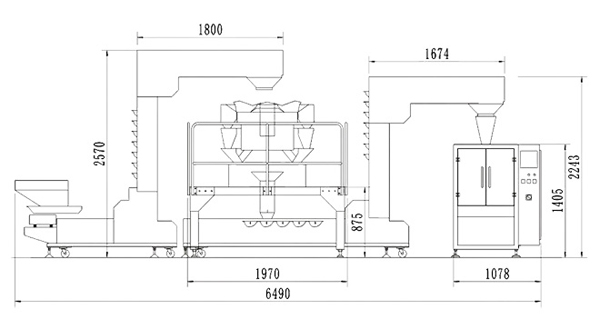

Host appearance chart：
|
