DBIV-5240APeanut packing machine automatic
Product’s Name:DBIV-5240APeanut packing machine automatic Product’s ID: DBIV-5240APeanut packing machine automatic |
Introduction: |

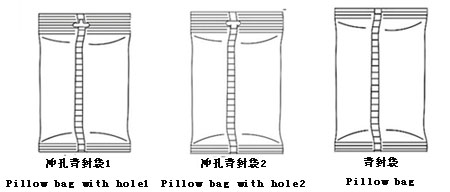

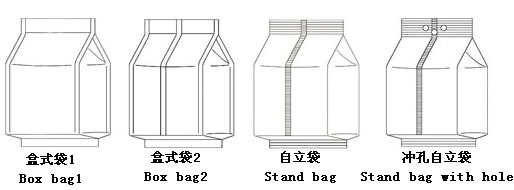

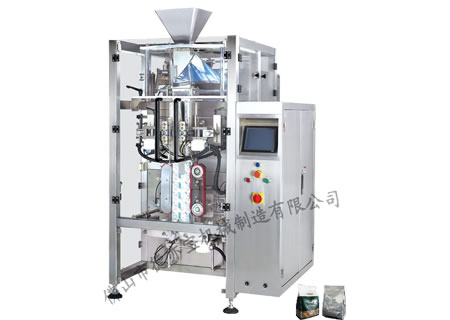

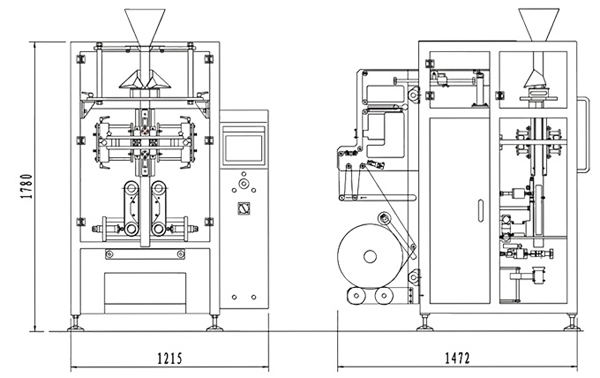

DBIV-5240AVERTICAL AUTOMATIC BOX PACKING MACHINERY Technical characteristics: 1. PLC control with stable, reliable biaxial high accuracy output and color touch screen,bag-making, measuring, filling, printing, cutting , finished in one operation. 2. Box-packaging bag is more nicety . 3. Servo motors control the car, rying film , high precision orientation, size more nicety. 4. External film releasing mechanism: simpler and easier installation of packing film. 5. The process of vertical sealing can adjust the volume deviation automaticlly ,greatly reduce labor intensity . 6. Stand bag with burns edges,4 sides seal edges , novelty and slap-up ,and the mainstream bag shape . Application: Suitable for packing granule,powder.Such as peanut*rice*milk*flour.etc.packing with in 2000ml. Technical parameters: Type:DBIV-5240A Measuring range:2000ml(Max) Bag-mking size : Front width:75-130(mm) Side width:40-80(mm) With of side seal:5-10(mm) Bag length:100-380(mm) Packaging speed:10-60bags/min Packing material:OPP/CPP OPP/CE PET/PE etc.complex film Max width of film roll:520mm(Box Bag1:460mm) Voltage three phase:220VAC/50HZ Machine power:5.5KW Dimension:1500(L)x1220(W)x1800(H)mm Machine weight:600KgBag Format: |
