Product’s Name：DBIV-6848-PMAutomatic packaging machine screws   Product’s ID： DBIV-6848-PMAutomatic packaging machine screws

Introduction：

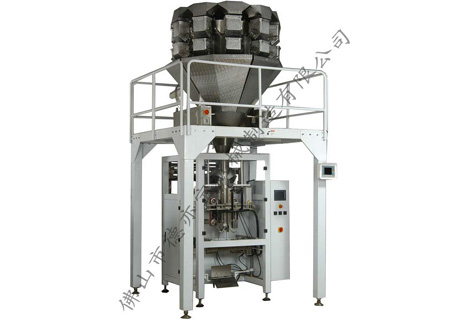

DBIV-6848-PM     LARGE VERTICAL AUTOMATIC PACKING MACHINE
Technical characteristics

1. PLC control with stable£¬reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.

Application
Suitable for many kinds of measuring equipment,and package different kinds of products.

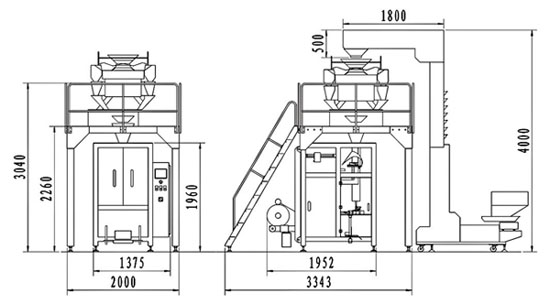

Dimensions
