Product’s Name：DBIV-6848Automatic powder packing machine   Product’s ID： DBIV-6848Automatic powder packing machine

Introduction：

DBIV-6848 LARGE VERTICAL AUTOMATIC PACKING MACHINE
Technical characteristics：
1. PLC control with stable£¬reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.
Application：
Suitable for many kinds of measuring equipment,and package different kinds of products
Technical parameters：
Type：DBIV-6848
Bag   length：              100-480mm(L)
Bag     width：              180-320mm(W)
Max width of roll film：680mm
Packing    speed：      5-50bags/min
Measuring range ：    6000ml(Max)
Air consumption：      0.65mpa
Gas consumption：   0.4m3/min
Power：                        5KW
Dimension：1780(L)×350(W)×1950(H)mm
Net Weight：900Kg

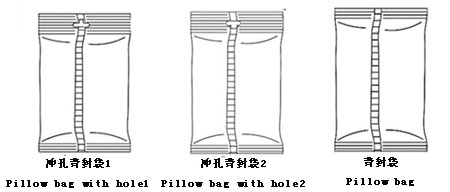

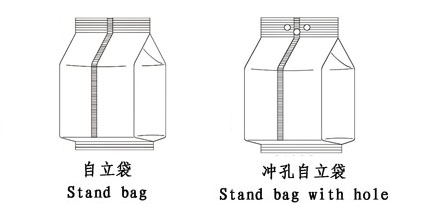

Bag Format：
